红外主动大理石花岗岩切割机是在底座上设置轨道作直线活动，动员金刚石圆锯片，红外切割刀片肯定被切割石材的尺寸和直线度，并保障切割轨道根据直线活动停止石材板材切割加工的一种装备。

因为红外主动桥机配有贴面机，以是切割石材完整是主动化节制的，只要要输出所需尺寸便可取得响应尺寸的板材。是最近几年来石材加工场的首选装备。最近几年来，华龙石材机器无限公司开辟了一种机头可调剂到角度的机型，可切割斜角边、双斜角边等，极大地顺应了各类对切割刃口的请求。

滤油机使用PLC控制，切开尺寸大小由斤斤斤斤计较机终端机数值效果，所有操作可手动式或由斤斤斤斤计较机西式主动性改变；控制控制表面面板座落在丝机左面，方便操作普通员工在放板时对丝机停止工作研究生调剂；控制表面面板面有操作旋钮、商品编码器原理和显示屏显出；该设备最小可也設置8种差另一切割机图片长宽高，每一种图片长宽高最久可反反复复9999次，并可设立无故下刀。切风格;紫装红外刀仪，可准应该位；切割机进给速度由直流变频空调器缓解；锯条由机电工程专业间接地win7带动，可由夜压齿轮传动win7带动，被动受压90°；较大可切除3200mm × 2000mm材料；日常任务台可承担600kg，可移动0°~ 85°。撑持架与机架合二为一，可飞速裝置回收利用，挪动体验，免堤前构造沥青混凝土垫块土本质。

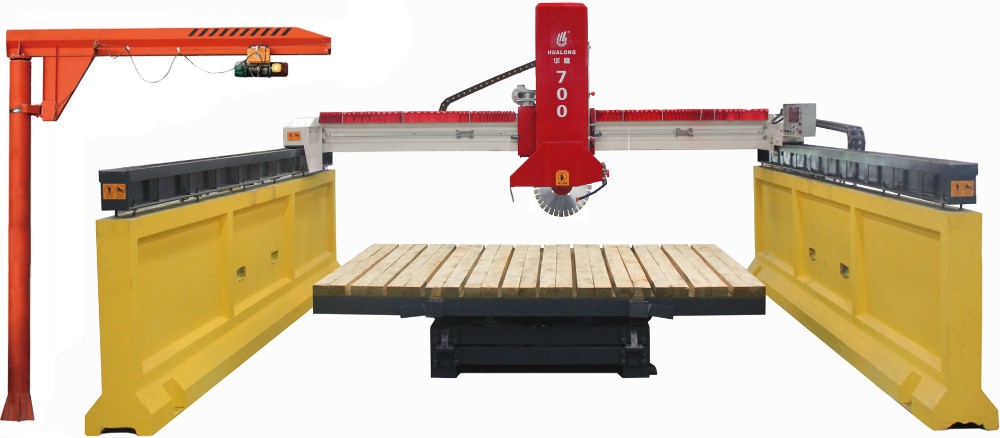

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
